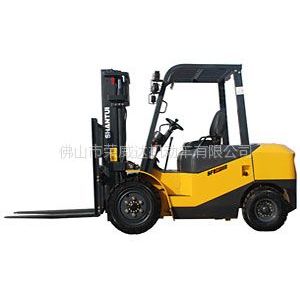

| 加工定制：否 | 品牌：山推叉车 | 型号：SF38/38T |
| 工业车辆：- | 类型：液力/机械叉车 | 行走方式：内燃式叉车 |
| 特种行业：- | 货叉最低位：-mm | 货叉长度：可选mm |
| 载重量(kg)：- | 额定起重量(kg)：- |
标准参数（前轮单胎）STANDARD DIMENSIONS (FRONT SINGLE TIRE ) | |||||||
概要 General | 型号Model | SF38/38T | 单位 | ||||
额定载荷Load capacity | 3800 | kg | |||||
载荷中心距Load center | 500 | mm | |||||
动力形式Power type | 柴油Diese | ||||||
尺寸 Dimensions | 起升高度Lift size | 3000 | mm | ||||
自由起升高度Free lift height | 160 | mm | |||||
货叉尺寸Fork size | 1070x122x50 | mm | |||||
门架倾角Mast tilt angle | 6/12 | deg | |||||
前悬距Fort overhang | 495 | mm | |||||
外形尺寸 | 总长Length to face of fork | 3829 | mm | ||||
总宽Overall width | 1226 | mm | |||||
门架不起升高度Overall height fork lowered | 2070 | mm | |||||
门架起升时高度Overall height fork raised | 4216 | mm | |||||
安全架高度Overhead guard height | 2140 | mm | |||||
最小转弯半径Turning radius | 2450 | mm | |||||
最小直角通道宽度Min.right angle aisle width | 2200 | mm | |||||
性能 Performance | 行驶速度（满戴/空载）Travel speed (full load/no load) | 液力叉车Hydraulic | 19/20 | km/h | |||
机械叉车 | 1档 | 8.8/8.8 | |||||
Mechanical | II档 | 20/20 | |||||
满载起升速度Lift speed with load | 420 | mm/sec | |||||
爬坡度Max.gradeability | 20 | % | |||||
自重Self weight | 4680 | kg | |||||
底盘 Wheel&tires | 轮胎Tires | 前轮Front | 28X9-15-14PR | ||||
后轮Rear | 6.50-10-10PR | ||||||
轮距 Tread | 前轮Front | 1000 | |||||
后轮Rear | 980 | mm | |||||
轴距Wheelbase | 1700 | ||||||
离地间隙（满载/空载）Ground clearance (full load/no load) | 门架Mast | 110/135 | mm | ||||
车架Frame | 130/135 | mm | |||||
动力单位与控制Drive units &control | 发动机 Engine | 通用车型Apply to truck model | SF38/38T | ||||
型号Model | CA498 | 495BPG | |||||
额定功率Rated output | 42/2450 | 42/2650 | km/rpm | ||||
额定扭矩Rated torque | 190/1800 | 174/1800 | N.m/rpm | ||||
缸数No.of cylinder | 4 | 4 | |||||
缸径x行程Bore x stroke | 98x105 | 95X105 | mm | ||||
排量Displacement | 2.980 | 2.97 | L | ||||
